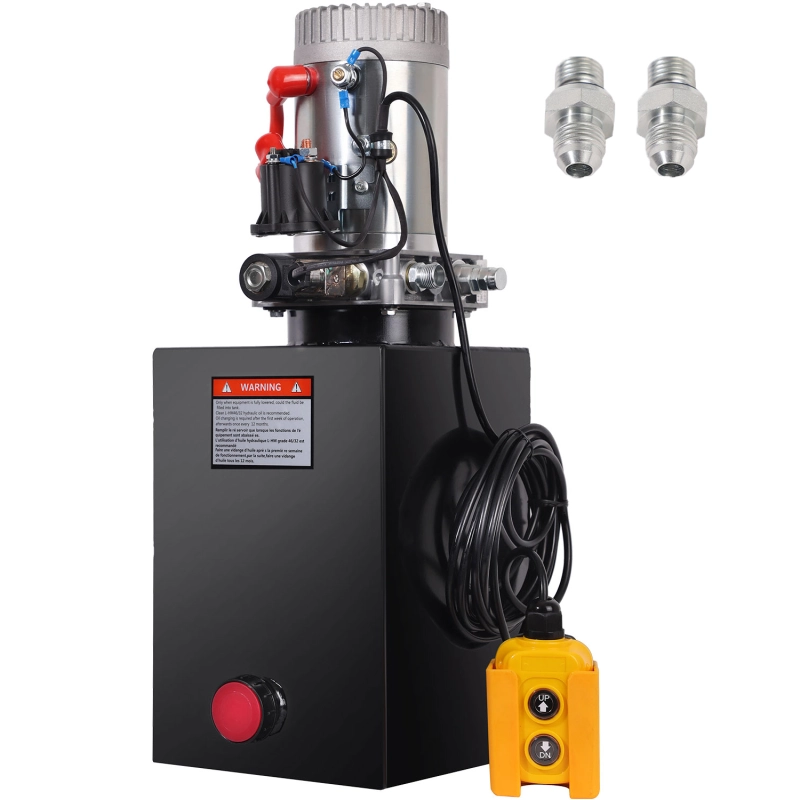

HONYTA Hydraulic Power Unit Pack（12 Quart Singel Acting ）12V DC Motor with 12 Quart Iron Oil Tank Singel Acting Performance Pump for Lifting 4M Control Handle

High Quality Components

Equipped with high-quality motor, high-density special plastic fuel tank, not easy to leak; Gear pump sleeve has a unique anti-wear formula, providing long-term service life.

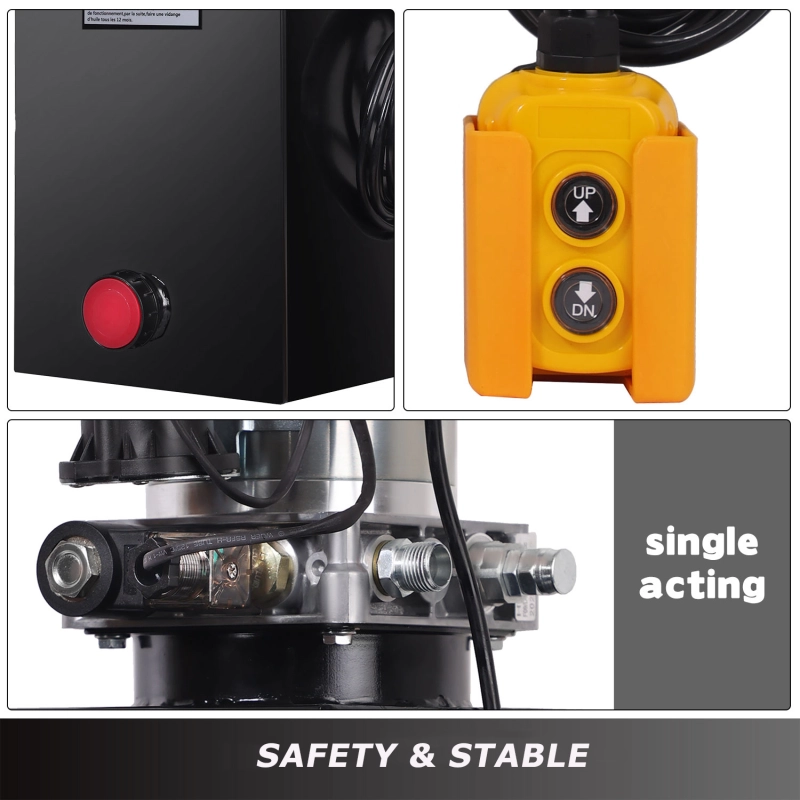

Safety & Stable

Start this unit through 4-meter wired control handle. The valve can control fall speed in a certain extent, give you time to react. The tank is designed not easy to leak and damage, keep you away from danger.

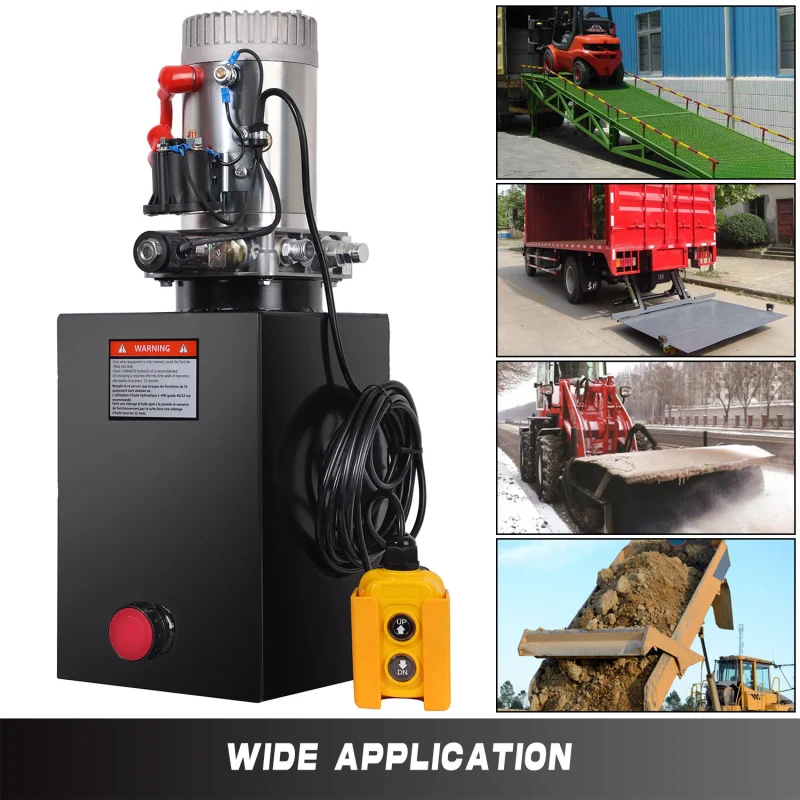

Applications

The power unit is mainly used for lifting, and can be combined with other equipment to achieve cutting, compression,  assembly and so on. Widely used in vehicle lift, scissors lift automobile tail gate and many other equipment.

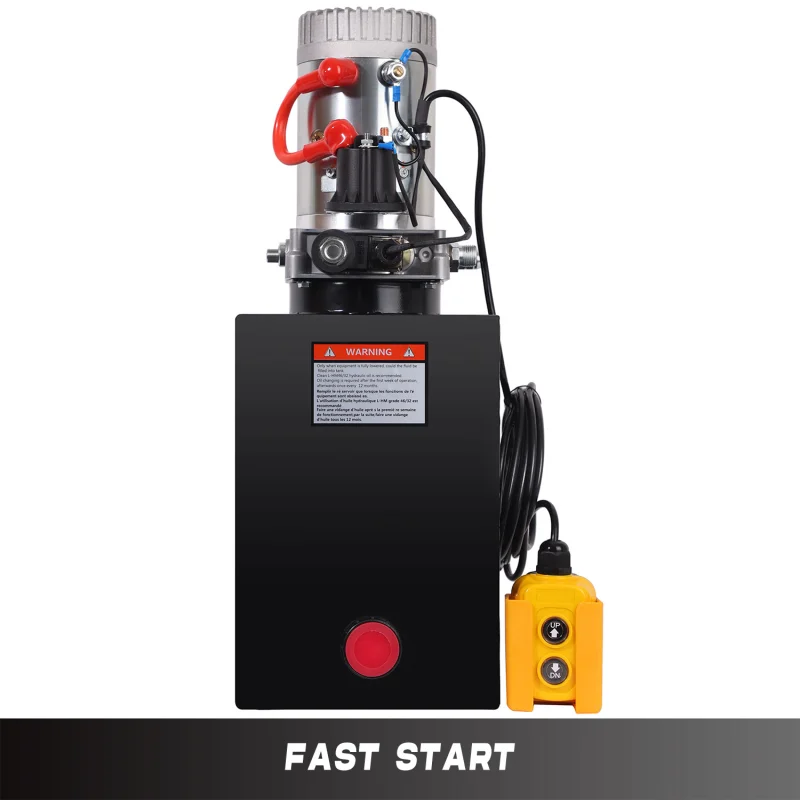

Better response speed in order to improve your work efficiency.

This kind of power unit suitable for small and medium lifting equipment and platform.
Power unit can be operated remotely by the handle.
The motor implements the S3 standard and can be started within 30 seconds to drive the gear pump to run.
The maximum continuous working time is 2.5min.

Specifications

PUMP

• Flow: 0.83 GPM
• P\T Port size: G3/8 (M18*1.5)

• Voltage:DC 12V
• Relief valve set pressure: 22 MPa
• Power:1.6 Kw
• Rated speed:2850 r/min

Single Acting for Vehicle-Mounted lifting

• High-quality Hydraulic Pump
• 12V DC motor
• 12 Quart Iron Oil Tank
• 1*SAE6 (9/16") Transfer Interface
• 4-meter Wired Control Handle

• Material: Iron
• Capacity: 12 Quart
