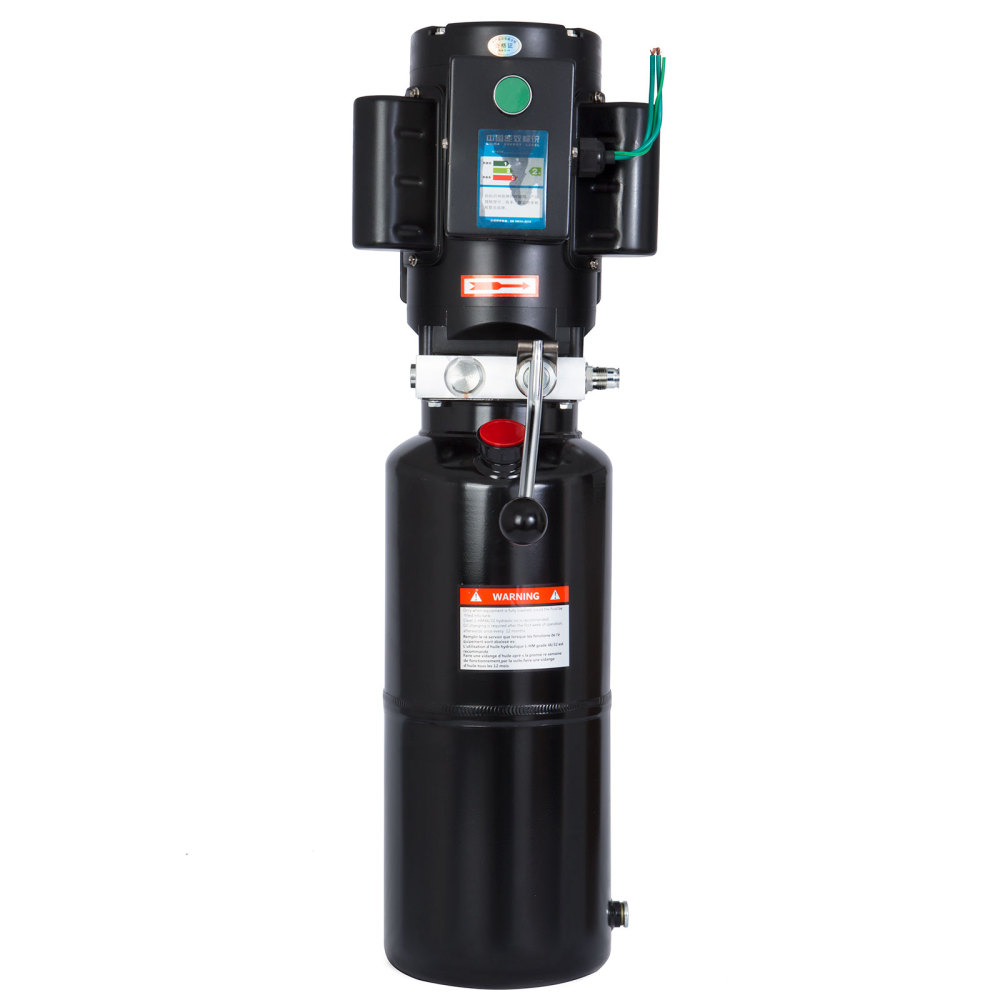

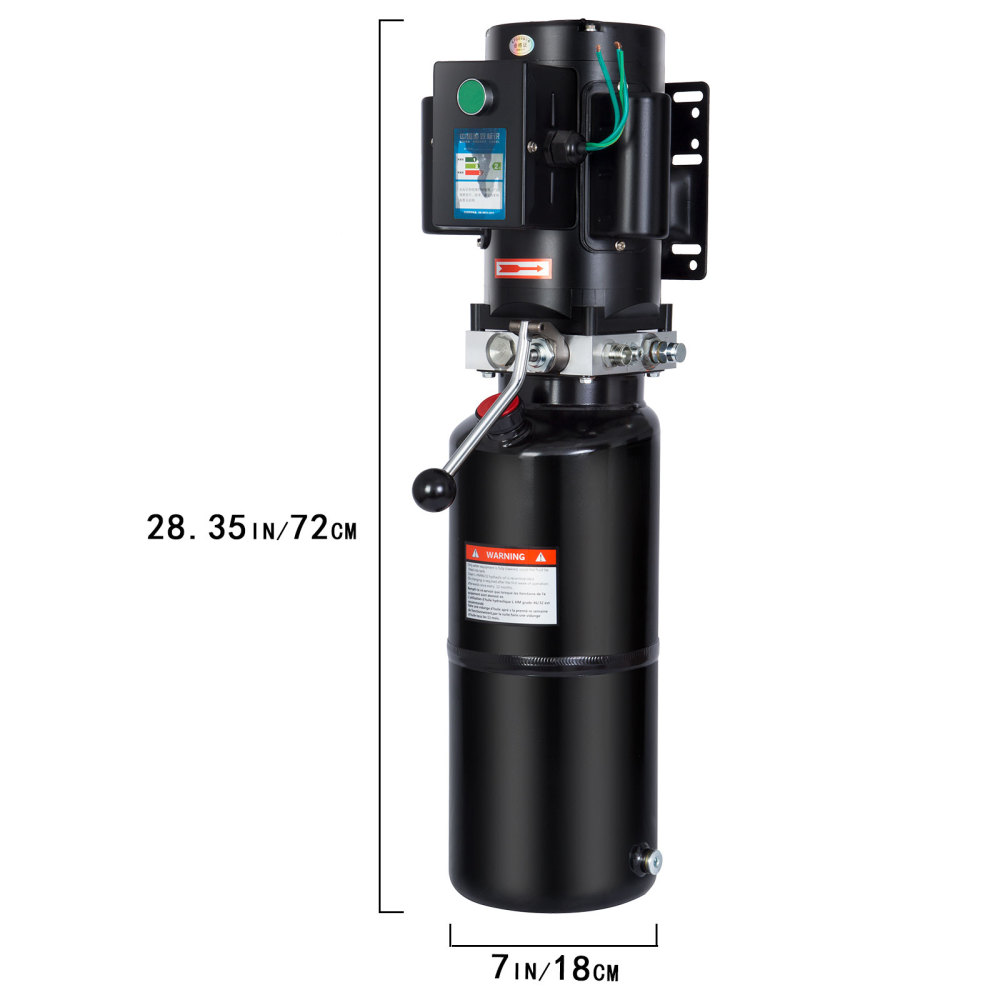

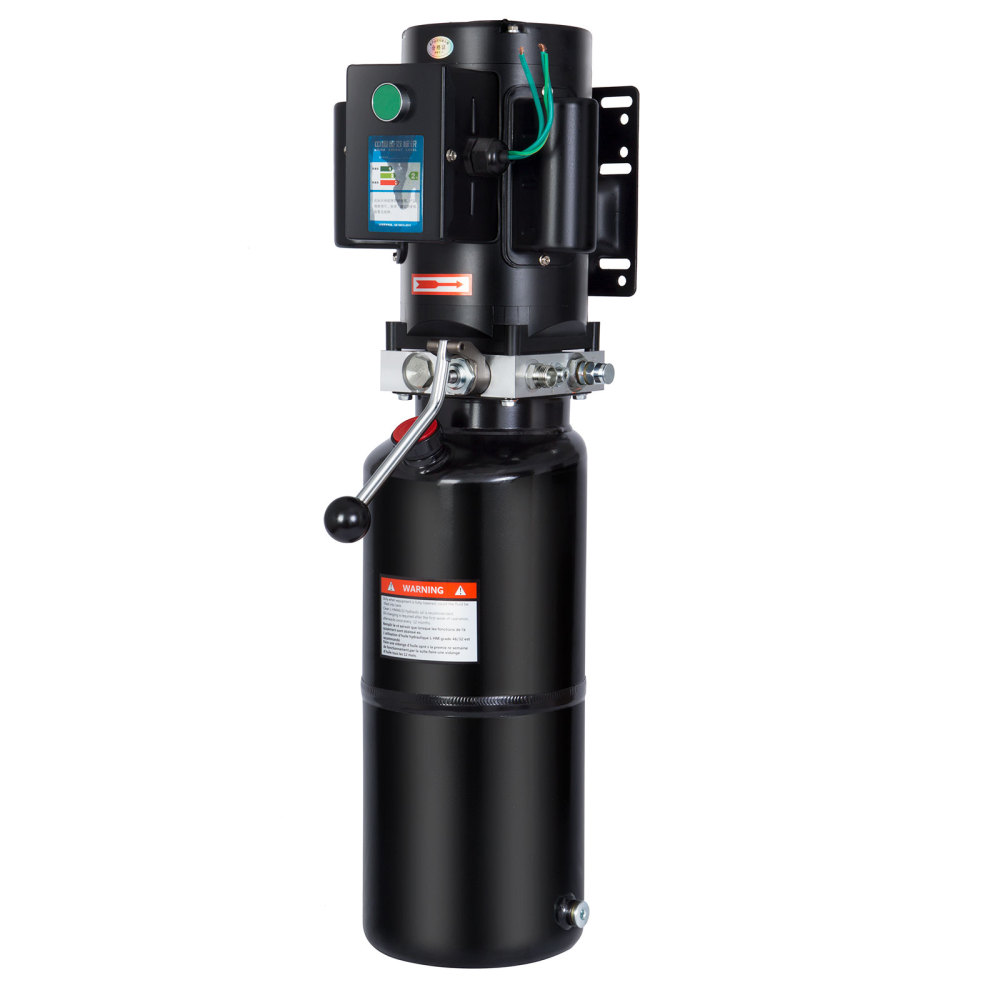

HONYTA Hydraulic Power Unit 220V AC Motor with 2.64 Gallon/ 10 Quart Iron Oil Tank Manual Control Hydraulic Power Pack Hydraulic Pump for Dump Trailer Car Lifting

About this item

[High quality components]: High quality 220V DC motor supports the stable work of the whole device;Equipped with 10L iron oil tank, can adapt to harsh environment;High quality gear pump, precision processing, long service life.
[Easy to operate]: Equipped with 4-meter wire control switch, you can operate the product through the handle. Single acting valve block, can control the oil cylinder rise, the oil cylinder according to its own weight down.
[Safety guarantee]: Contains factory-configured adjustable relief valve, set pressure is 21 MPa;the material of the fuel tank is durable and will not break and leak in harsh environments.
[Work efficiency]: It can be started quickly within 30s, the maximum working time is 2.5min, better response speed, only to improve work efficiency.
[Widely used]: It can be widely used in automobile lifting, shear elevator, aerial work platform,electric stacker, automobile tail plate, van, boarding bridge, snowplow, pallet car, etc.

0.0 (0 Reviews)

0 Sold

$199.99

Received successfully

Coupon Code

Description

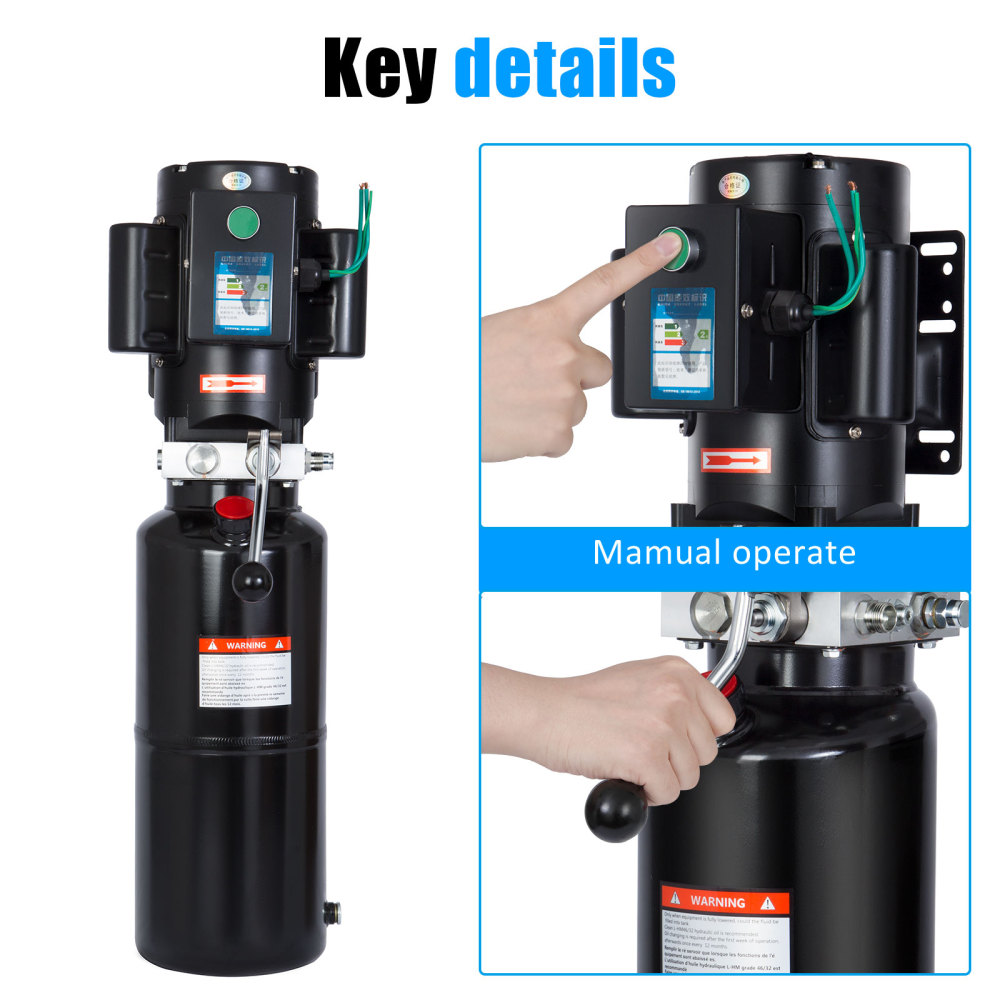

Easy to operate-FAST START

Start the motor through the GREEN BUTTOM. The motor implements the S3 standard and can be started within 30 seconds to drive the gear pump to run.

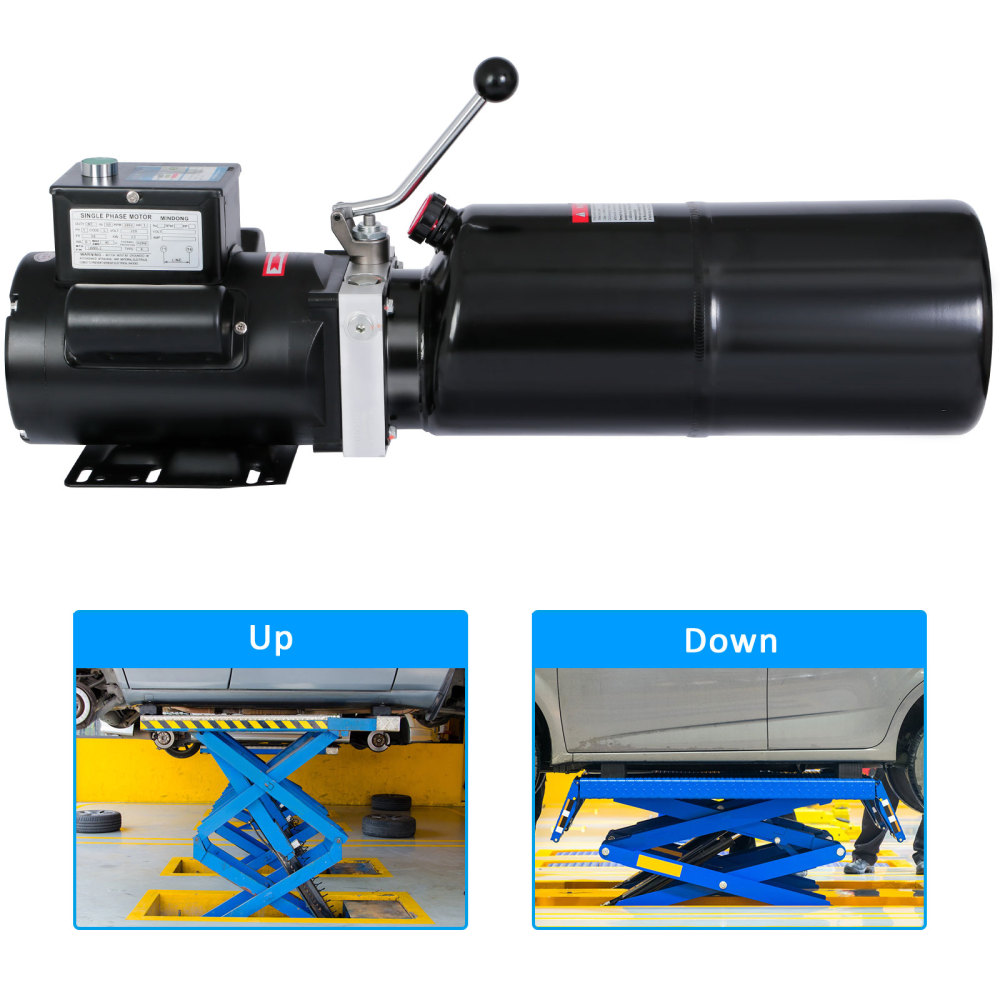

Safe & Stable-Car lifting

Mostly used in car lifting, can better support the car.

The throttle valve can control fall speed in a certain extent,give you time to react, the tank is not easy to leak and damage, keep you away from danger.

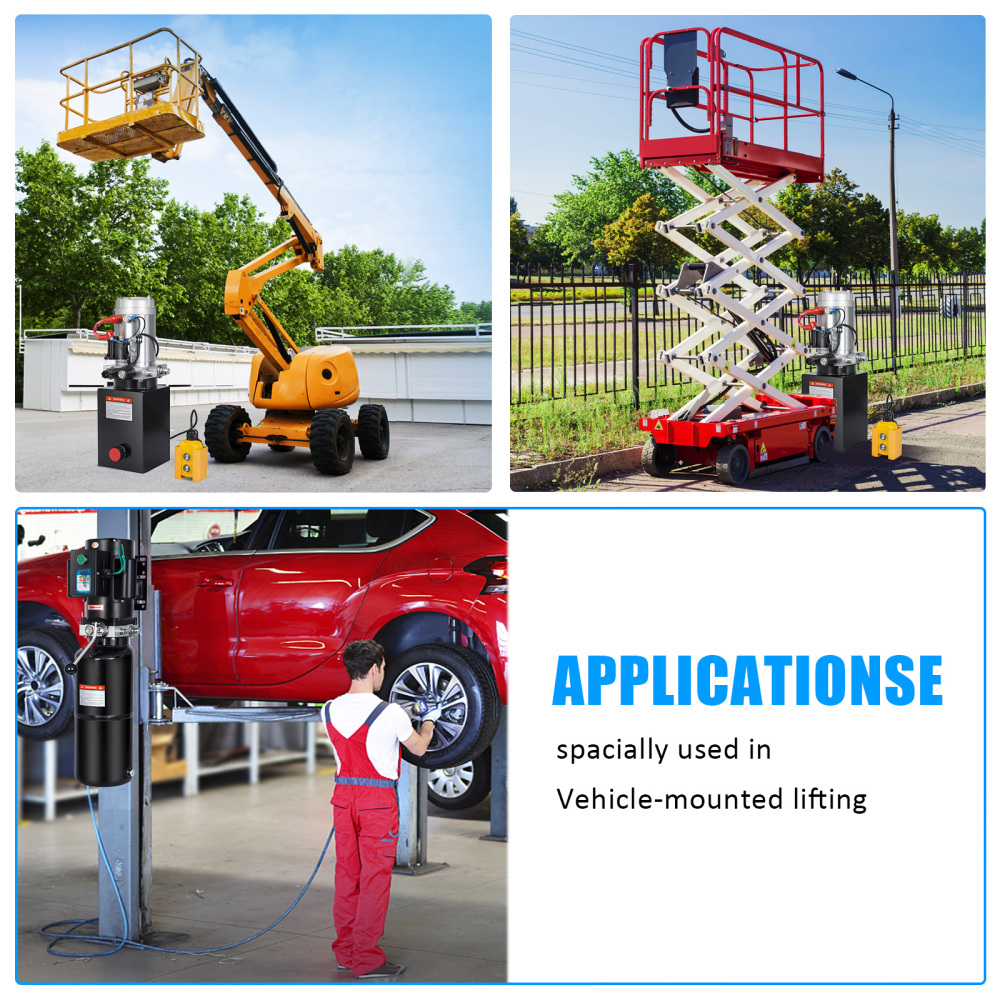

Wide applications

The power unit is mainly used for lifting, and can be combined with other equipment to achieve cutting, compression,assembly and so on.Widely used in vehicle lift,scissors lift automobile tail gate and many other equipment.

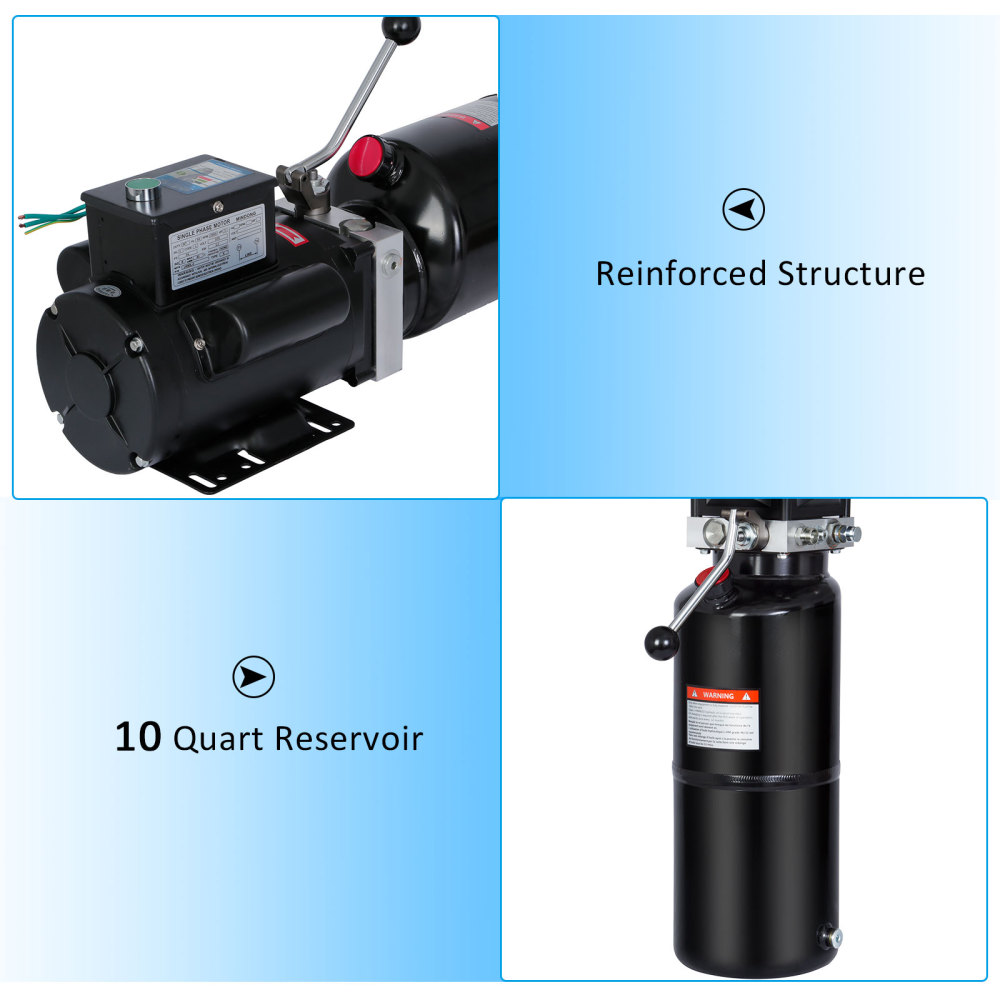

10 Quart Iron Oil Tank

220V DC Motor for Vehicle-Mounted car lifting

This kind of power unit suitable for small and medium lifting equipment and platform,consists of a high-quality hydraulic pump, a 220V AC motor,10 Quart Iron Oil Tank,an integrated relief valve block, a relay and manual handle.

Single acting valve enables the two post vehicle lift have the function of lift and fall.The throttle valve can control fall speed in a certain extent.It widely used in dump truck cylinder jacking,scissors lift,aerial work platform and many other fields.

Specifications

1× Hydraulic Power unit
1× Manual
2×SAE 6 (9/16") fitting

MOTOR

Voltage: AC 220V
Relief valve set pressure: 21 MPa
Power:2.2 Kw
Rated speed:2850 r/min

TANK

Material:Iron Tank
Capacity:1 Quart
