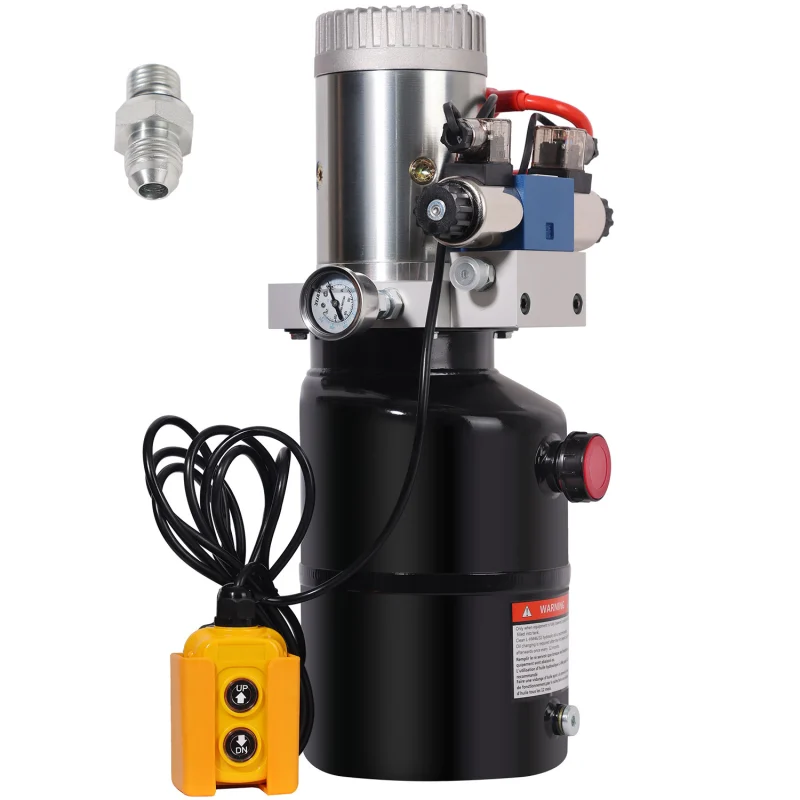

6 Quart Iron Oil Tank 12V DC Motor Single Acting Hydraulic Power Unit for Vehicle-Mounted lifting

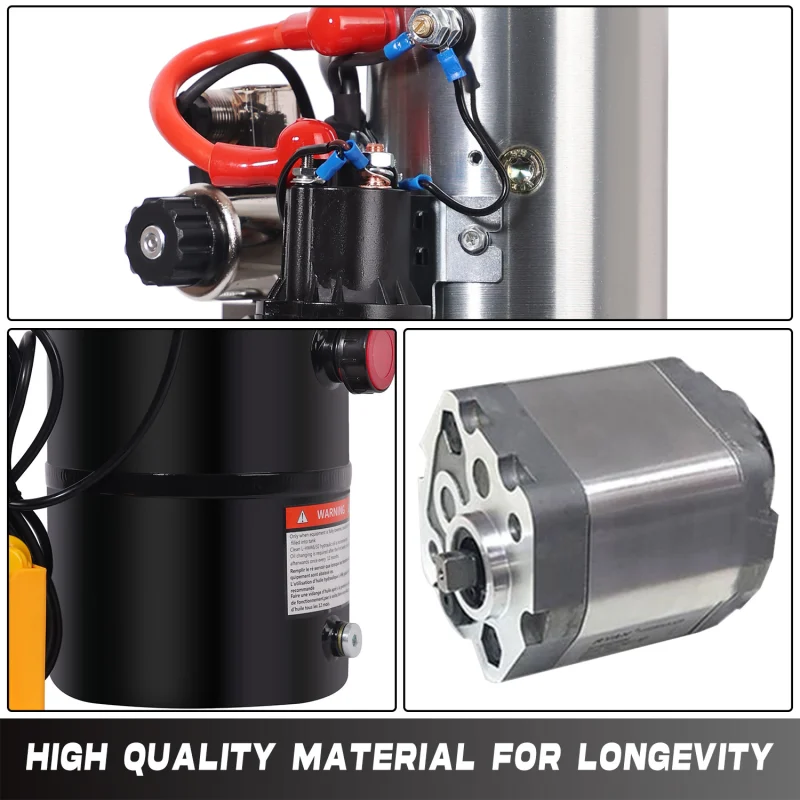

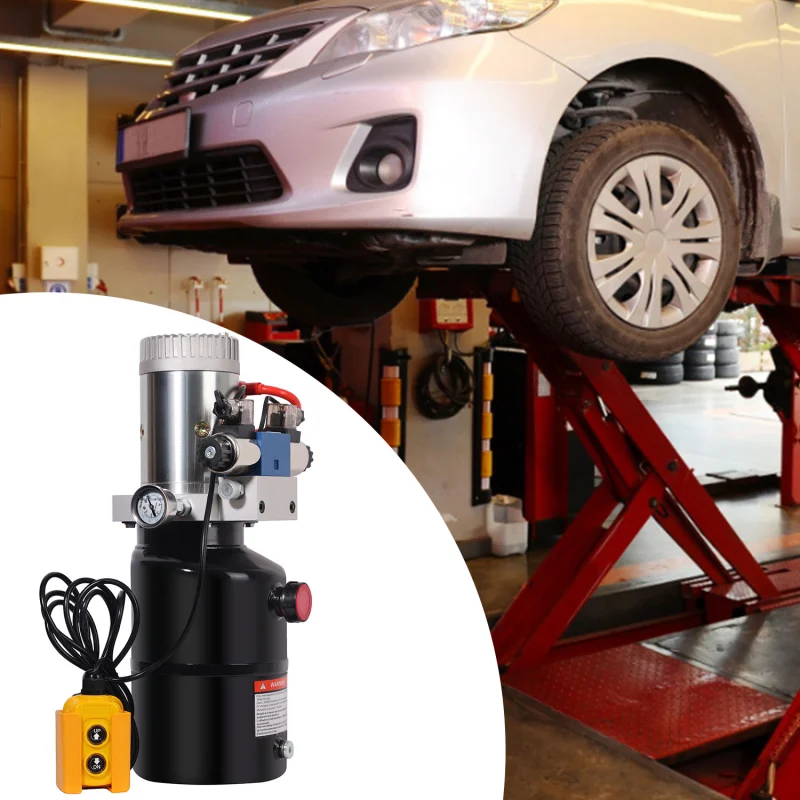

This kind of power unit suitable for small and medium lifting equipment and platform,consists of a high-quality hydraulic pump, a 12V DC motor,6 Quart Iron Oil Tank,an integrated relief valve block, a relay and a 4-meter wired control handle.Single acting valve enables the two post vehicle lift have the function of lift and fall.The throttle valve can control fall speed in a certain extent.It widely used in dump truck cylinder jacking,scissors lift,aerial work platform and many other fields.
- High-quality components
- Work efficiency
- Easy to operate
- Keep Safe
- Wide range of applications
|
|
Specifications
- Flow: 0.83 GPM
- P\T Port size: G3/8 (M18*1.5)
MOTOR
- Voltage:DC 12V
- Relief valve set pressure: 22 MPa
- Power:1.6 Kw
- Rated speed:2850 r/min
TANK
- Material:Iron Tank
- Capacity:6 Quart
- 1×10 Quart Single Acting Hydraulic Pump
- 4-meter wired control handle
- 1× Manual
- 1×SAE 6 (9/16") interface
|
